Sale price$2,495.00 Regular price$2,995.00
Save $500.00
SKU: 0744985474721
Quantity:

Professional HDMI 2.0b 4K@60 4:4:4 Vision/Atmos 16x16 HDMI Matrix Switcher Splitter, Fiber Optic HDMI Cables Compatible

Features:

  • HDMI 2.0b, any HDCP up to latest 2.3 compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
  • Support 18Gbps video bandwidth
  • Dolby Vision, HDR10+ and HLG are supported.
  • Support 4K->1080P Down Scaler for each output port
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Audio de-embedded is supported via analog and coax ports
  • ARC, eARC, CEC and smart EDID management are supported

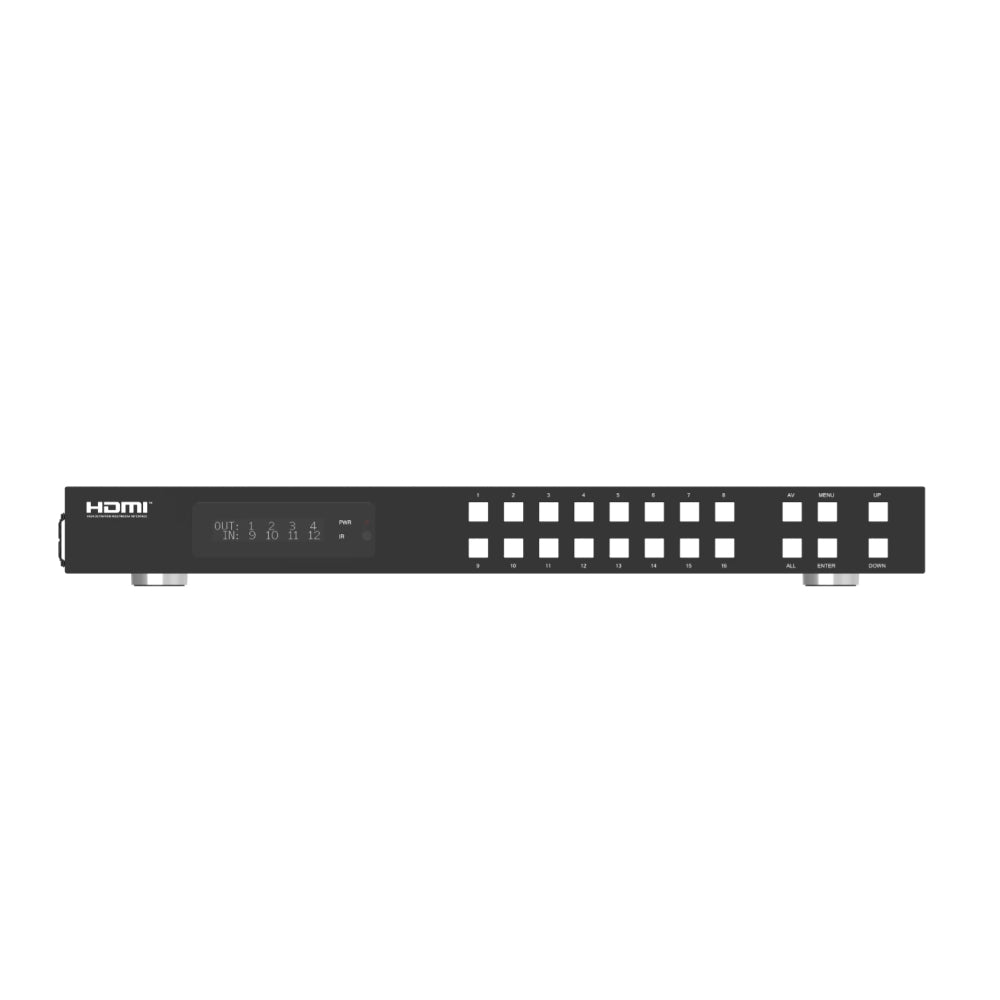

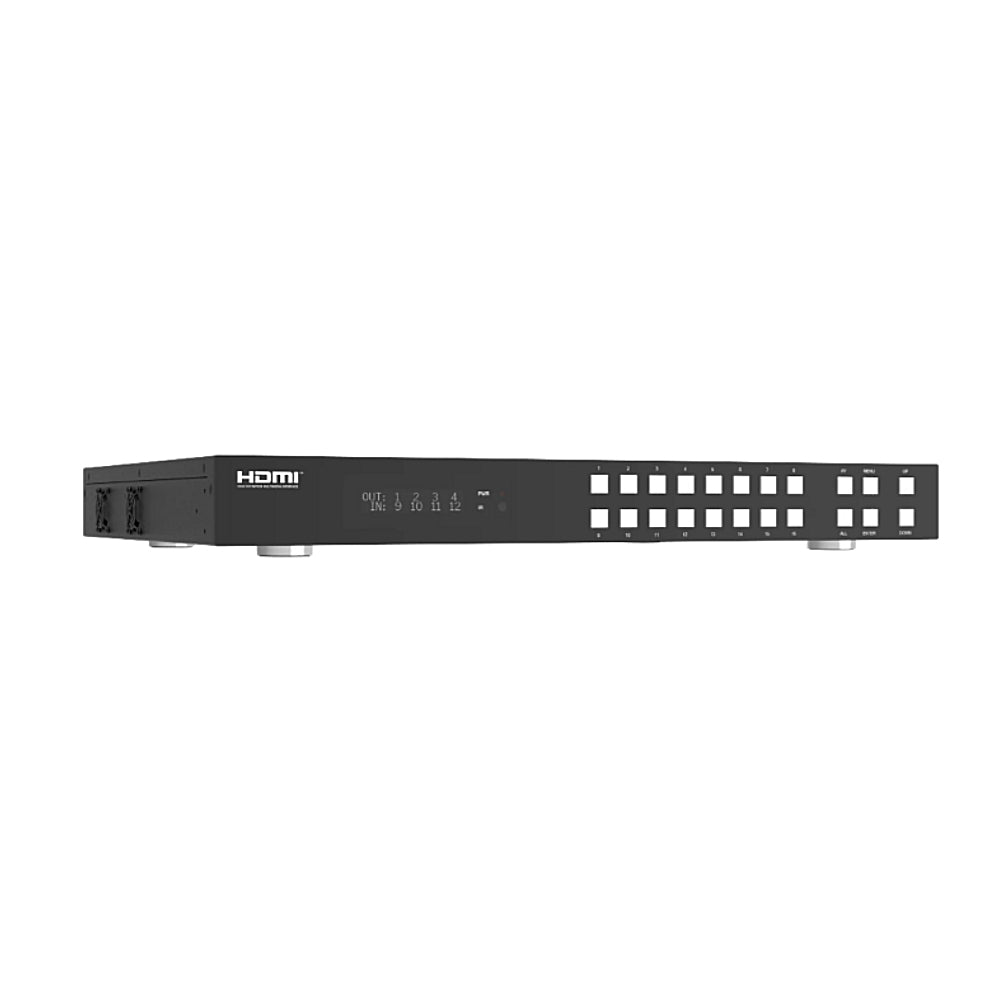

  • 1U rack mounted design with front panel OLED display
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
  • Simple Integration with any Automation System and software


Package Includes:

  • 1 x 18Gbps 16 x 16 HDMI Matrix
  • 1 x 12V/5A Power Adapter
  • 1 x IR Remote
  • 1 x IR Receiver cable (1.5 meters)
  • 1 x RS-232 serial cable (1.5 meters, male to female head)
  • 2 x 1RU Mounting Ears
  • 1 x User Manual


Technical Specifications:

  • HDCP Compliance up to HDCP 2.3
  • Video Bandwidth 18Gbps
  • Video Resolution Up to 4K2K@50/60Hz (4:4:4)
  • Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0
  • Color Depth 8-bit, 10-bit, 12-bit

  • HDMI Audio Formats
    (Pass-through)
    LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+,
    Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    Coax Audio Formats LPCM 2.0, Dolby Digital / Plus, DTS 5.1
    L/R Audio Formats PCM2.0
  • HDR formats HDR10,HDR10+,Dolby Vision, HLG

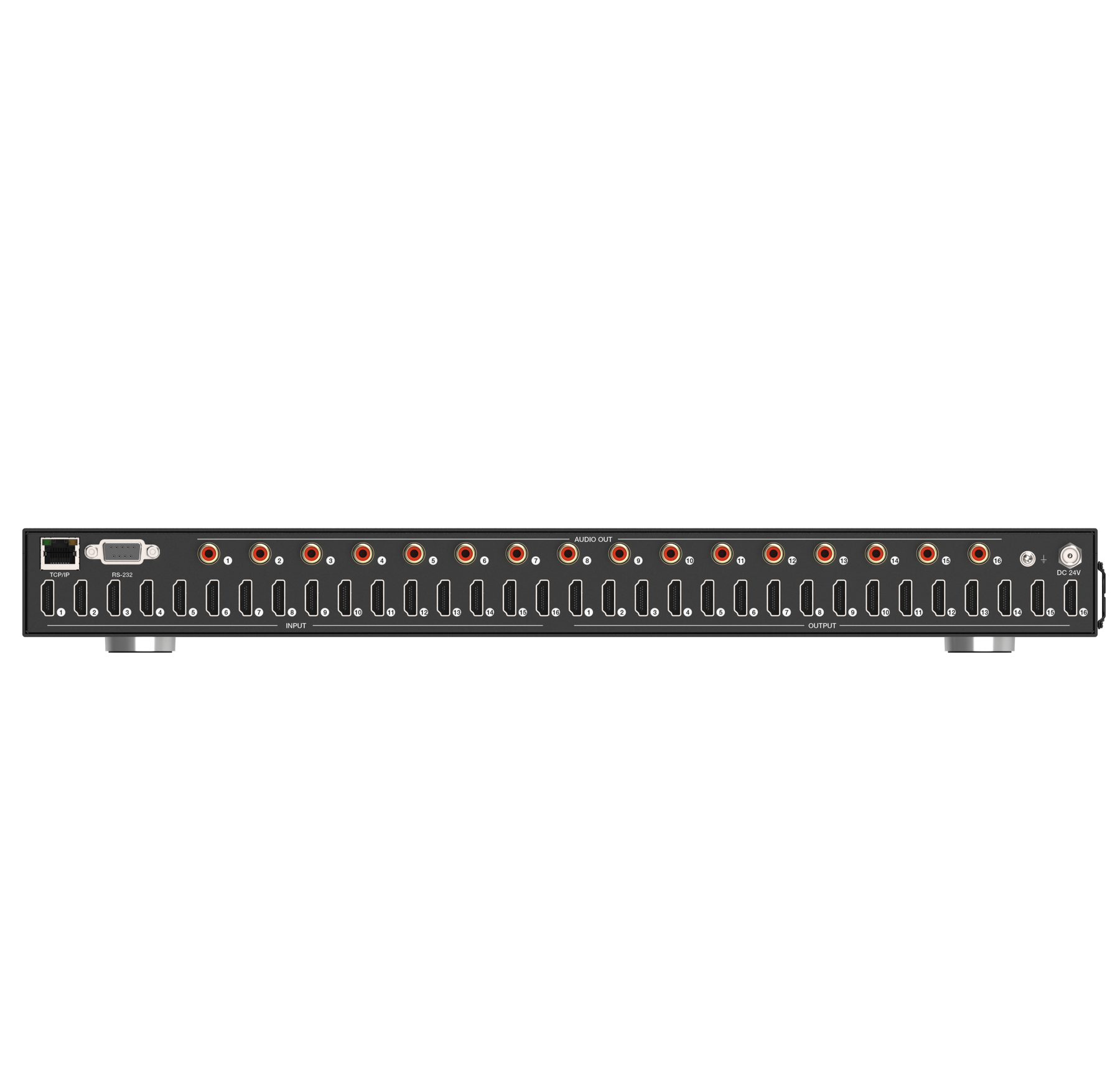

  • Output Ports:
  • 16×HDMI Type A [19-pin female]
  • 16×Coax Audio (RCA)

  • Control Ports
  •  1×TCP/IP [RJ45]
  • 1×RS-232 [D-Sub 9]

  • Input Ports
  • 16×HDMI Type A [19-pin female]
  • 1×IR EXT [3.5mm Stereo Mini-jack]

  • Mechanical
  • Housing Metal Enclosure
  • Color Black
  • Dimensions 440mm (W)×200mm (D)×44.5mm (H)
  • Weight 2.8kg
  • Power Supply Input: AC 100 - 240V 50/60Hz
    Output: DC 12V/5A (US/EU standard, CE/FCC/ULcertified)
    Power Consumption 43W

  • ESD Protection Human-body Model:
    ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

  • Operating Temperature
    -10°C ~ 45°C / 14°F ~ 113°F
    -20°C ~ 60°C / -4°F ~ 140°F
  • Storage Temperature
    Relative Humidity 20~90% RH (non-condensing)

remote control

Fiber optic quality

Professional video quality 18gbps Copper and
Fiber-Optic compatible Video Matrix Splitter.

Ideal building block for any 4K HDR 4:4:4 uncompressed video distribution for Residential and commercial pro applications.

Benefits

FiberMatrix delivers full HDMI 2.0b 18Gigabit quality Dolby Vision Atmos, twice of CAT-6/7 system, for the best and most immersive Entertainment ever.

Engineered for the Ultimate HDMI Fiber Optic cables, the FiberMatrix
provides proper levels to perfectly drive the lasers cables without any bit error, delivering a Next Level of visual and sound quality impossible with any CAT-6/7 based system which limits the bandwidth to 0 gigabit which is the max bandwidth of the cat-6/7 copper cables.

The unit works with seamless switching for No-Black-Screens
operations, adapting the selected input to all the concurrent selected output also to different TVs or Projectors at the same time.Controlled via the included remote control, or any programmable remote, or any 232 automation, or simply via the front panel push-buttons and display, the FiberMatrix connects the wanted source to the wanted TV or multiple TVs in one click, simple and reliable for any
application.

Fibermatrix-8 is a professional video quality 18gbps Copper and Fiber-Optic compatible Video Matrix Switcher Splitter, ideal building block for any 4K HDR 4:4:4 uncompressed video distribution for Residential and commercial pro applications.
