8K HDMI FIBERPLUG® | Extender HDMI 2.1-termineringer til alle fiberoptiske kabler

8K HDMI FIBERPLUG® | Extender HDMI 2.1-termineringer til alle fiberoptiske kabler

Name: 8K HDMI FIBERPLUG® | Extender HDMI 2.1-termineringer til alle fiberoptiske kabler
Brand: FiberCommand
SKU: 0744985473540
Price: 199.98 USD
Availability: InStock

$199.98 $249.99

Gem $50.01

SKU: 0744985473540

Quantity:

TESTED! - Fiberplugs delivers the BEST HDMI 2.1 ON THE MARKET - CHECK THIS VIDEO!

DEMO VIDEO

seamless

unmatched performance

Zero-Lag / Zero-Loss / Zero-Compression. 4K 120Hz 8K HDMI 2.1 4:4:4 full quality AV over fiber.

preterminated

"SNAP ON" Connections Works with any standard fiber optic.

Works with any standard fiber optic.

WHY DETACHABLE

Several reasons:

>just pull once the fiber optic in wall
>Can be used with any pre-exhisting fiber cable already in your wall
> can be upgraded in the future: the cable stay in-wall, the termination is swapped
> if you break it you can change it. No more pulling cables.
>The pre-terminated ends, allow a quick and easy installation.
>For Sport-Bar like applications, you can connect multiple Fiberplugs to the same cable

Exclusive Patented Worldwide

Connect to mpo fiber cABLES

FiberPlugs HDMI are FiberCommand exclusive patented worldwide Detachable HDMI 2.1 HD 4K 8K 10K, compatible to any Multi Mode MPO FEMALE/FEMALE Type-A OM3 / OM4 / OM5 fiber optic cable. Replace HDMI Extenders with a Future Proof Uncompressed Quality, Plug 'n Play!

There is no catch

Easy Setup

Just plug in and play.

wall plates

Clean Installation

Wall Plates for professional installation. Are optional and sold separately

48 GIGABBIT/S FULL BANDWIDTH - ERROR FREE

HDMI STAYS "FIBER" UP TO THE PLUG

Ultra HigH Speed HDMI 18 / 48 Gigabit/s cannot pass electrical wall plates without introducing Huge Data distortsion, so the TV negotiate for a lower speed and lose the quality.
With our world-wide exclusive patented FiberPlugs, we keep the fiber up to the HDMI plug, so the 4K 8K HDMI quality is Perfect!

USB POWERED

FIBERPLUGS HDMI connects to the TV / Monitor / Projector same as a TV Stick, plug the HDMI and the USB to power it up.
There is also a USB plug on the HDMI source side just in case the HDMI output port on the source does not provide power.
Usually there is not need to connect the USB on the source side.
Simple - Plug 'n Play

COMPATIBLE ANYWHERE

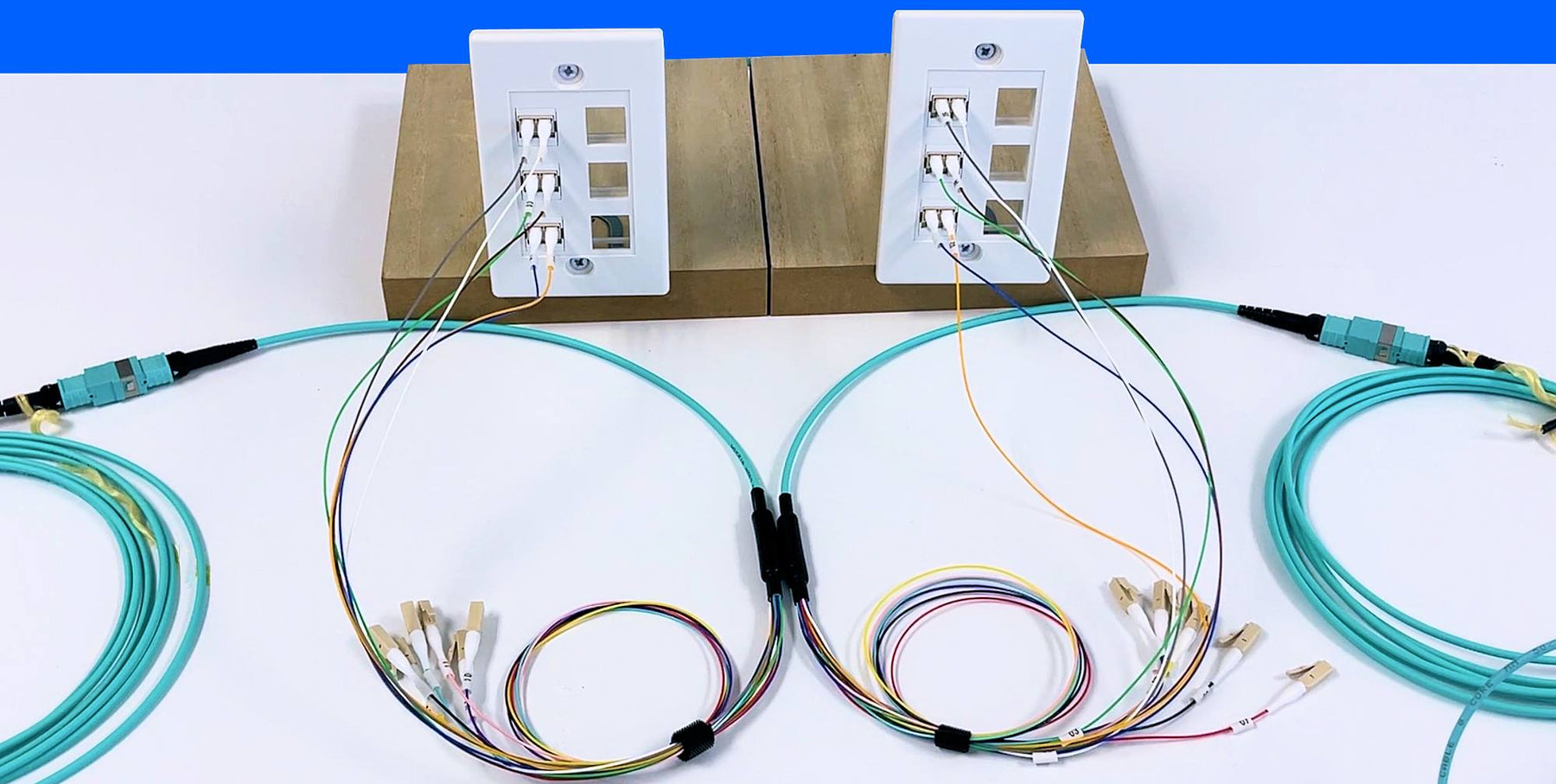

WORKS WITH EXISTING FIBER OPTICS

Use our MPO-LC breakout pigtails to connect our FiberPlugs to any existing Multi-Mode fiber optic cabling. FiberPlugs requires 6 fibers to make fully uncompressed HDMI 2.1 HD 4K 8K 10K 48gigabit/s HDR10+ cec hdcp 2.3 and audio return channel Dolby Vision / Dolby Atmos

Buy This Accessory

MULTI HDMI

MULTIPLE HDMI OVER THE SAME CABLE

Use our MPO Y-SPLITTER kit to splitt a 12 Fibers MPO cable into Two Female MPO with 6 Fiber Each ( 1-6). Connect TWO FiberPlugs HDMI sets for a dual Full 48Gigabit/s HDMI 2.1 4K/8K 120Hz connection, also Bi-Directional just flipping the Source & Display Heads!

buy this accessory

BEST HDMI 4K 120Hz 8K

USE IT WITH OUR ULTRAVISION FIBER

FiberPlugs HDMI connects directly to our ULTRAVISION MPO Multi-Mode ultra-clear ULTRA-FLEX fiber optic cables, designed for the best laser transmission also through sharp turns in wall or conduits. The Integrated ARMORED KEVLAR makes this cable ideal for residential, commercial, industrial, and in-wall applications

buy this cable

VIDEO WALLS / CONTROL ROOMS / AUDITORIUMS

MULTI-SCREENS APPLICATIONS

Use FiberPlugs HDMI with our HYDRA-VIEW multi head fiber cables for multi screen 4K 8K perfect quality applications such as CHURCHES / SCHOOLS / MEETING ROOMS / CONTROL ROOMS / MULTI COMPUTING DESKS / 4K 8K VIDEO WALLS / SPORTS BARS / BOWILING HALLEY / HOTEL LOBBIES / SPORTSBOOKS / RESORTS / ARENAS - full quality - zero lag - no programming!
100% 24/7 reliable

buy hydraview fiber cables

Et-klik-opsætning: 8K HDMI 2.1-terminering til ethvert standard fiberkabel.

Fordele:

Aftagelig fra hovedledningen i væggen
4K@120 / 8K@60 / 10K@30
48 Gbps og derover
ZERO-LAG patenteret IROVF-teknologi, UNCOMPRESSED , perfekt billede, for ægte seeroplevelse.
4 fod lange fibre fastgjort til HDMI for udvidet rækkevidde (intet behov for patchledninger til vægpladen).
Sæt med 2 HDMI 2.1 afslutninger inkluderet, kilde og destination.
Sæt med 2 koblinger inkluderet til "snap on"-forbindelser.
Fiberoptiske in-wall kabler er ikke inkluderet i sættet.
Installeres med to klik på ENHVER fiberoptik, problemfrit, ingen værktøj påkrævet. Fiberoptikkrav: Mpo type A-termineret, 6-strenget, kompatibel med Fibercommand IROVF PRO, Purefiber PRO og Ultravision PureFiber-produkter. Ikke kompatibel med XG-kabler.

Gem $30.00

PureFiber® ULTRA | Fiberoptisk kabel forudtermineret med MPO

Fra $129.98 $159.98

Gem $10.00

WP11 - valgfri vægplade til ULTRAVISION / PUREFIBER / LABFIBER kabel | Fibervægplade

$19.99 $29.99

Gem $30.00

FA1 - DUAL HDMI/DP Fiber Splitter | tilføj 2 HDMI/DP på samme kabel | MPO FIBER Y-SPLITTER (2 stk sæt)

Fra $99.98 $129.98

Udsolgt

iGAME® | USB-c 3.2 Fiber Optic Long Extender til VR-headsets

$199.98 $349.98

Techinical specifications

HDMI 2.1 PureFIBER Terminations

Detachable Fiber Optic HDMI Termination (patented)
World-Wide Exclusive patented 8K Removable Fiber optic termination FIBER PLUGS allow to pass the main cable anywhere then connect the HDMI, reducing the required diameter of the main fiber cable to pass in any conduit without the risk of damaging the HDMI connectors.
Removable HDMI connectors can be replaced at any time without the need to replace the entire cable, making the PureFIBER solution ideal for Home, residential, commercial integration, replacing slow cat6/7/8 extension solutions which also limits the HDMI quality to max 10 gigabit, bottleneck of the cable speed.
Both terminations require a common USB-A 5volts continuous power (50 milliampere) in order to share commands also when the TV/Projector/Amplifier/Sources are turned Off, at the time these are turned on.

Full HDMI 2.1 HD/4K/8K/10K
Our FIBER PLUGS fiber optic HDMI extenders terminations supports all HDMI formats up to the latest HDMI 2.1 48 gigabit.
Specifications includes:
- Source HDMI 2.1 / Display HDMI 2.1 Termination set
- 4.9 feet / 1.5 Meters long - each side
- Fiber Optic laser transmission for pure error-free noise-free connection of video & sound no copper cable can do.
- Full Compatibility with any legacy HDMI TMDS up to HDMI 2.1 FRL 48gigabit/s full speed
- Full Compatibility with any legacy HDCP up to HDCP 2.3 or Higher
- backwards compatible with earlier HDMI versions such as HDMI 1.3/1.4/2.0a/2.0b
- supports any resolution including SD HD 3D 4K 8K 10k
- Supports all frames rates including 4K@30 4K@60 4K@120Hz 8K@60 (and world-wide variants)
- Supports DSC 4K@240Hz
- Supports 4K@144Hz 4:4:4 Uncompressed
- Full 4:4:4 HDR10+ Uncompressed (HDMI 2.1 Standard FRL 48gigabit full speed)
- Dolby Atmos, THX, TRUE-HD, object-based audio, uncompressed 5.1 and 7.1, and 32-channel uncompressed audio
- Full Specs HDMI 2.1 including DSC, ALLM, QFT, QMS, VRR, Dynamic HDR,

MPO Connectors
- 12 fiber MALE PC type standard MPO (with pins)
- Use 6 Fibers 1 to 6 TYPE-A Straight on the main cable (not inverted)
- Compatible with MULTIMODE Fiber Optics OM3 OM4 OM5 (cannot work on single mode fiber - see our KVM or SDI product for single mode)

USB TYPE-A Power connectors
Each termination requires 5 VOLTS 100 milliampere USB power supply
Power can be taken from common power strips equipped with USB charging outlets
If power is connected from TV or the HDMI source, the USB Power might be off when the equipment is off making it impossible to operate the CEC consumer electronic controls during TV and Sources turn-on boot operations.
Please cosider to connect a permanent stable USB power source to both sides for the best interactive operations.
Our FiberPLUGS comes with auto stand-by so when no HDMI source is active the lasers turns off for zero consumption

Extended Length ARC over fiber (Patented)
Unique on the market our special Dedicated ARC over fiber Exclusive Priority link connects the sound from the TV or projector back to the AV receiver up to 330 Feet (100 meters) away in the basement or electrical closet without losing the original surround quality while playing movies or apps on the smart TV. Since there is no compression, no wire-sharing with other signals, our ARC sound quality is Pure-Perfect, same as the original, with no loss. Supported formats are standard ARC Dolby Digital.

Extended CEC Remote Controls
FIBER PLUGS includes our Enhanced Hi-Velocity CEC over fiber Consumer Electronic Control link enabling the discovery and control of all the connected HDMI cec devices directly from the TV or Projector remote control, without the need for multiple remote controls. Simply connect your TV or Projector with our PureFIBER Cable to the AV receiver away in the basement or closet, and the TV/Projector will find all the devices.
For the proper operation of the CEC, the Fiber Plugs USB power cords must be connected to a permanent standard 5 Volts source, same as a phone charger, also available on power strips, with minimal requirement of 50 milliamperes. Using the USB power on devices is also possible however when the device is turned off, no cec commands can send to the other side of the cable. Only legacy old HDMI devices or non-cec capable devices will not be discovered, and for these simply use our Fiber Docking accessory..

PATENTS

HDMI 2.1 PureFiber® Terminations

USPTO US20210223482A1; US20200343976A1; US 17224644; 16930729 ;63036256
WIPO International PCT 36857
CN 2020216970117 ; 067583000003

Patent pending in Taiwan, Germany, and other countries.
