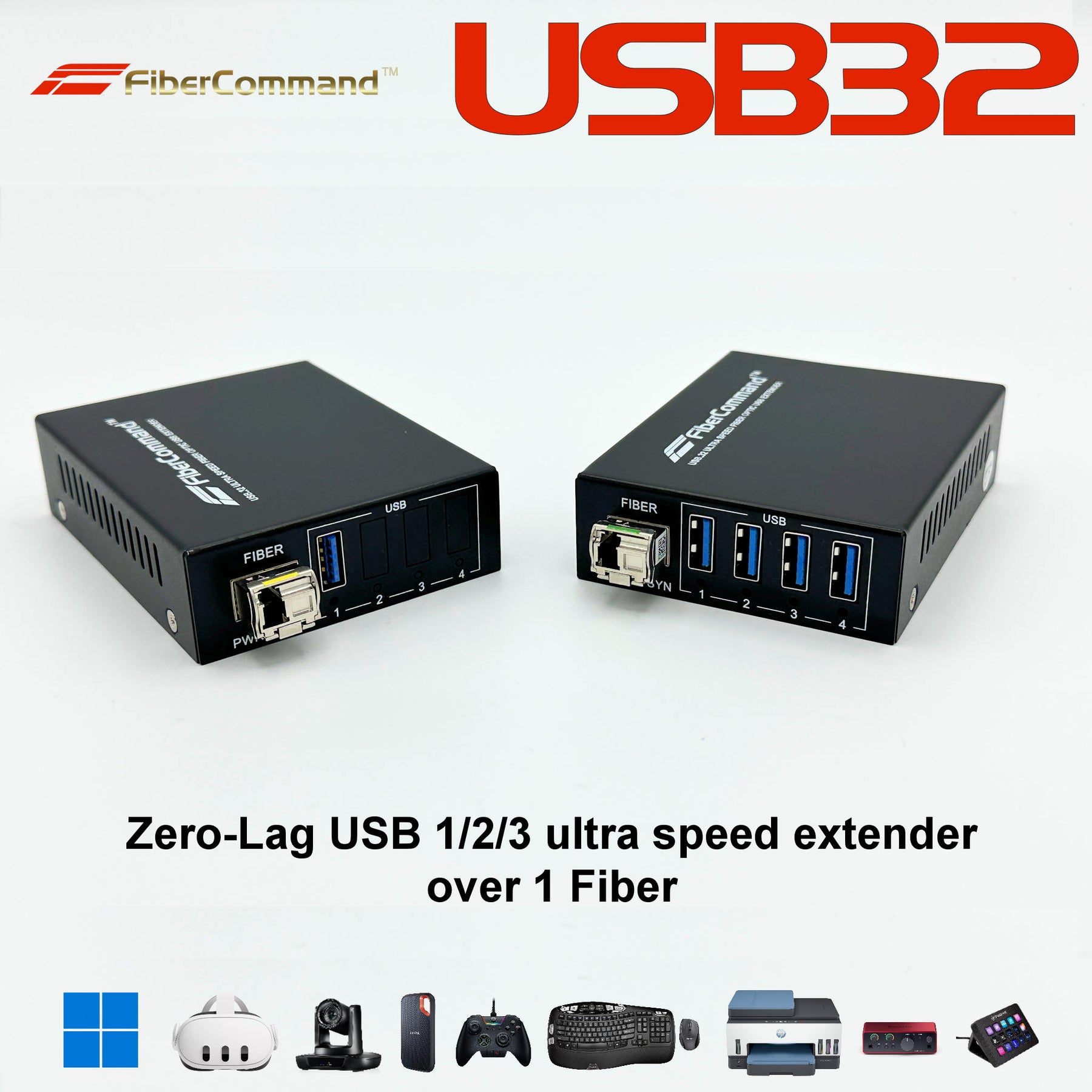

ubs-c usb-3 ultra speed extender for work or gaming over single fiber

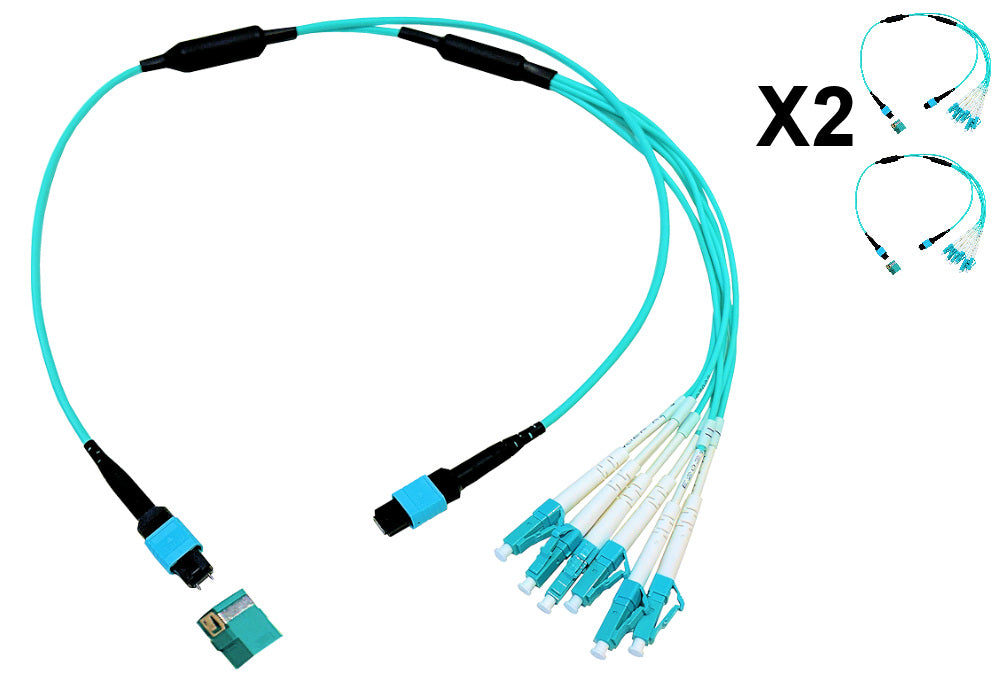

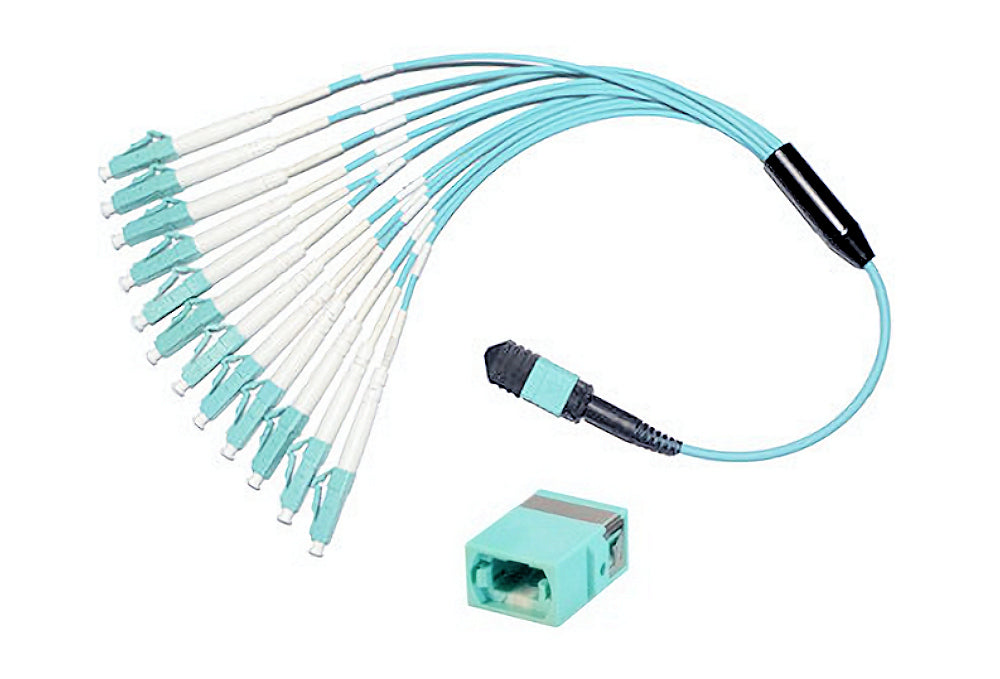

mpo female to 12 lc pigtail breakout cable adapter multimode by fibercommand

PureFiber® ULTRA | MPO ile Önceden Sonlandırılmış Fiber Optik Kablo

Name: PureFiber® ULTRA | MPO ile Önceden Sonlandırılmış Fiber Optik Kablo
Brand: FiberCommand
SKU: 0726754663321
Price: 245.98 USD
Availability: InStock

$245.98

SKU: 0726754663321

Uzunluk:

Variant

Quantity:

YÜKSEK PERFORMANS

1,2 TERABIT bant genişliği, benzersiz sinyal bütünlüğü, ULTRAFLEX®

OM3 / MPO sonlandırıldı Kadın-Kadın /A Tipi
Kristal Berraklığında Yaşlanma Karşıtı Ultra Hızlı Işık Bozulmasız Fiber Çekirdekler
12 telli (12 fiber optik)
1.2 TERABIT
Paslanmaz Çelik ultra esnek Zırhlı Mikro-örgü Ceket
UV ışınlarına/Neme/Aşırı Sıcak/Soğuğa dayanıklı/Her türlü hava koşuluna dayanıklı/Duman geçirmez/Yangın geçirmez
Kevlar Esneme Önleyici Koruma (Kolay Çekme İçin)

Duvar İçi/LSZH (Plenum)/Boru İçi Dereceli
İç Mekan/Dış Mekan/UV Korumalı

ULTRAFLEX® Teknolojisi (90 Dereceye Kadar Dönüş Yapabilme Özelliği)
KOLAY ÇEKME Sorunsuz kurulum için koruyucu kılıf (ücretsiz olarak dahildir)
5 yıl garanti

resistent

ULTRAFLEX®

Optimized to whithstand tight bends.
Higly flexible, is optimized to perform sharp curves without signal loss.

The finest fiber optic

Built to excel, we guarantee unparalleled quality where performance makes the difference: in audio, video and internet applications.

Pre-Terminated

"SNAP ON" Connections

Easy installation. Simply "SNAP" on the terminations with the keystone or coupler.

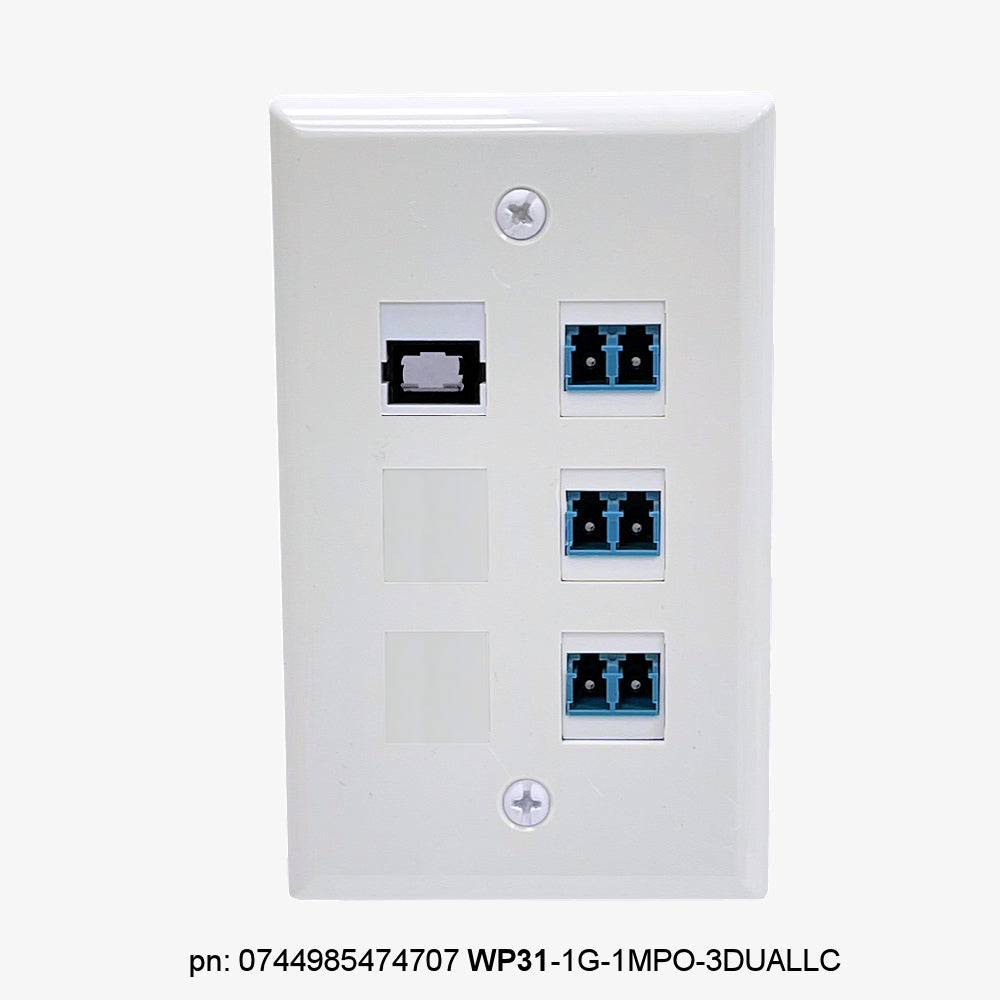

Clean Install with Wall-Plates

Wall Plates optional and sold separately for professional installation.

Easy-Pull

Included EASY-PULL system with Kevlar anti-stretch

Sold out

TA1 - FİBER ETHERNET/İNTERNET Aksesuarı | aynı kabloya fiber hızlı ethernet ekleyin - 4 portlu FiberSwitch

$149.98

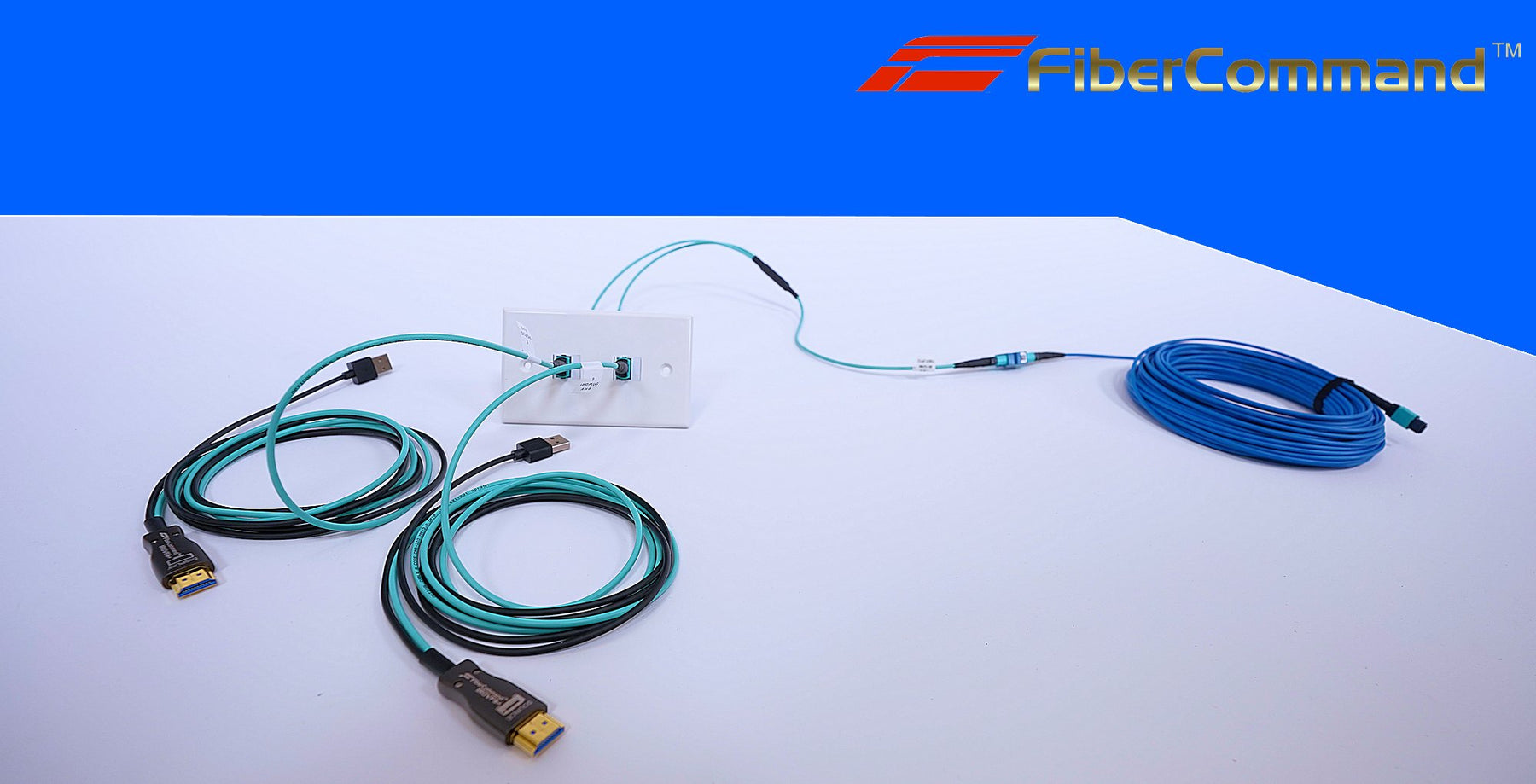

8K HDMI FIBERPLUG® | Herhangi bir Fiber Optik Kablo için Genişletici HDMI 2.1 Sonlandırmaları

$249.99

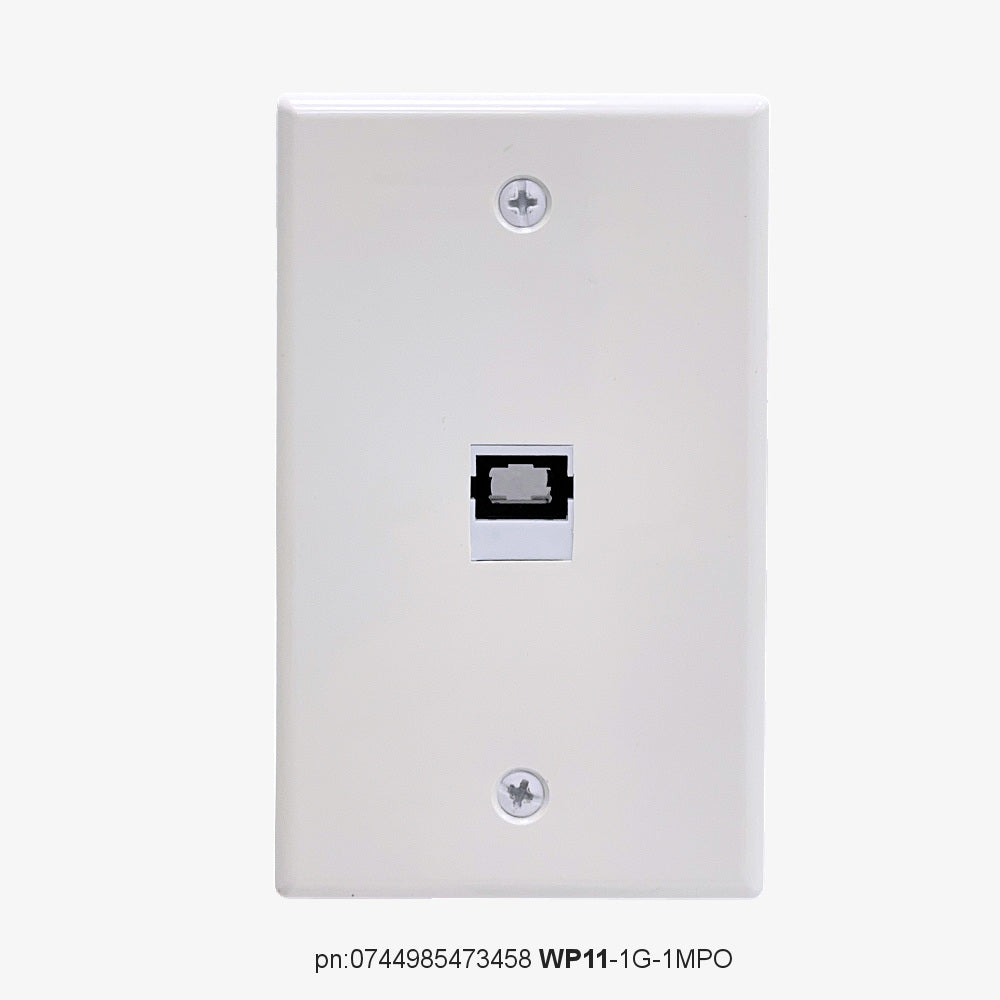

WP11 - ULTRAVISION / PUREFIBER / LABFIBER Kablo için isteğe bağlı Duvar Plakası | Fiber Duvar Plakası

$29.99

TECHNICAL SPECIFICATIONS

PureFIBER ULTRA Main Cable

Pre-Terminated Flexible Fiber Optic
Our Professional Ultra High Speed multimedia pre terminated Fiber Optic cables makes every data & multimedia installations simple anywhere, with ready-for-signals plug 'n play connections without requiring expensive converters adapters.

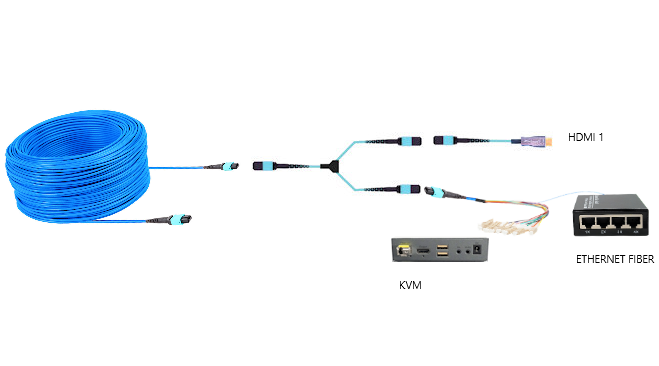

Where standard fiber cables does nothing, our PureFIBER cables connects Audio, Video, Data, Bus, Smart Home, Fiber Internet, USB, VR, Controls, Alarms, Telephones, and all the ultimate signals direct of via common keystones wall plates.

Braided Sleeve Ready to Pull (patented)
Pre-Terminated connectors ready to plug and use without requiring any long or difficult on-site fiber termination job.
Connectors comes protected by a plastic wrap plus an outer Nylon braided sleeve, ready for any construction site, weather-proof.

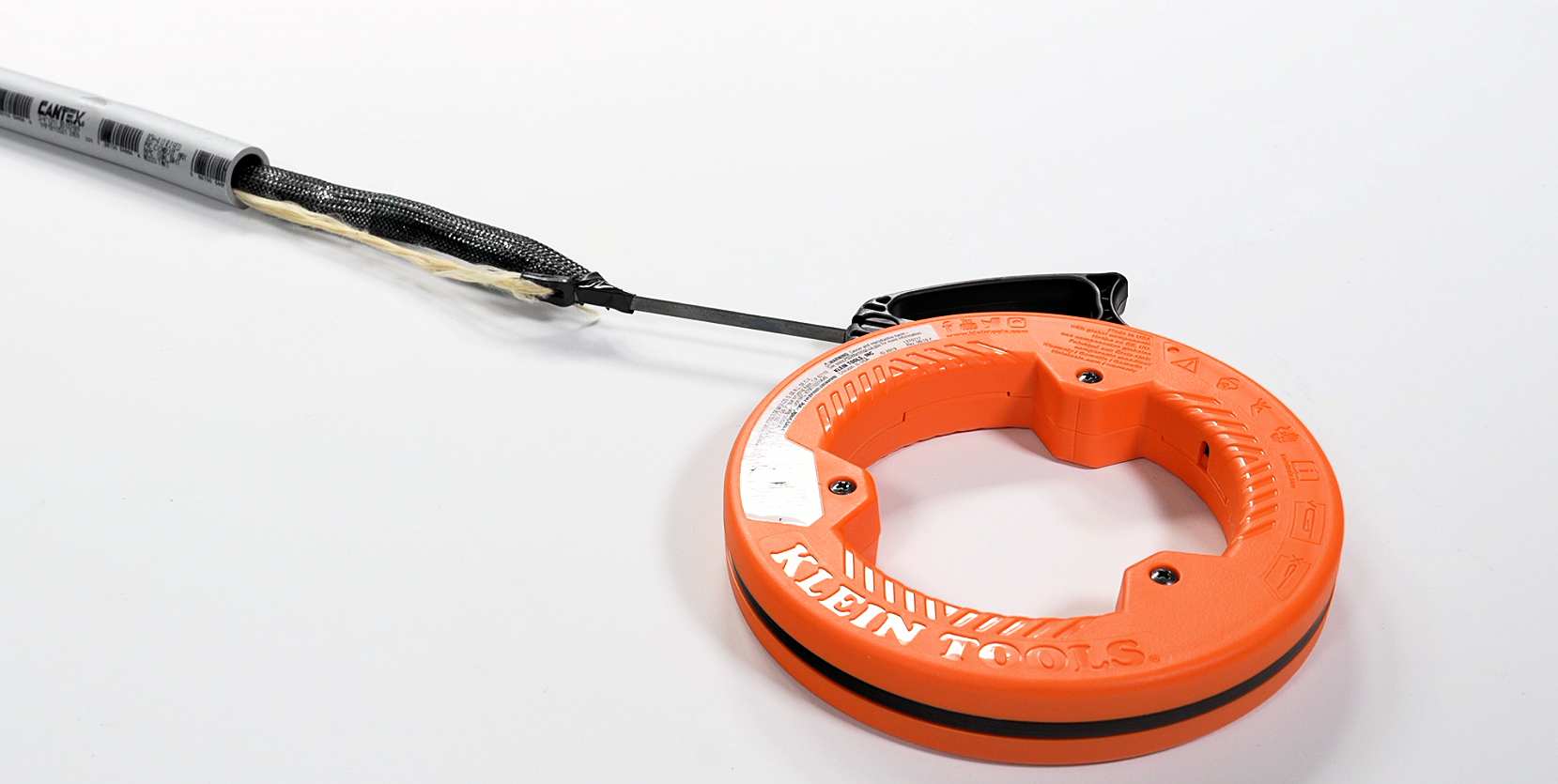

A Kevlar Strands cord attach to any Fish Tape or Old Cables to pull the PureFIBER cable through anywhere, also very crowded conduits with 90 degrees turns, without any risk to damage the fibers.
Our cable can pull through a 3/4" conduit leaving space for any extra or pre-existing cable.

Fiber Optics

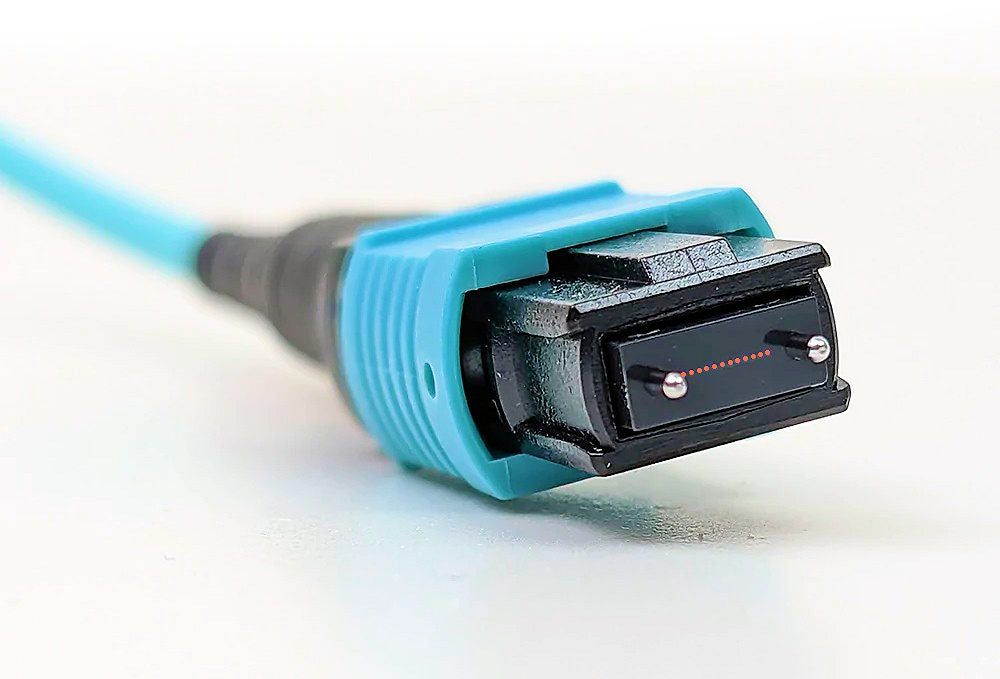

One MPO Female connector with 12 OM3 Multi Mode Fiber Optics each - Total 12 Fibers
Each Fiber strand supports 100 Gigabit/s Speed
Total Cable Bandwidth is 1.2 Terabit/s

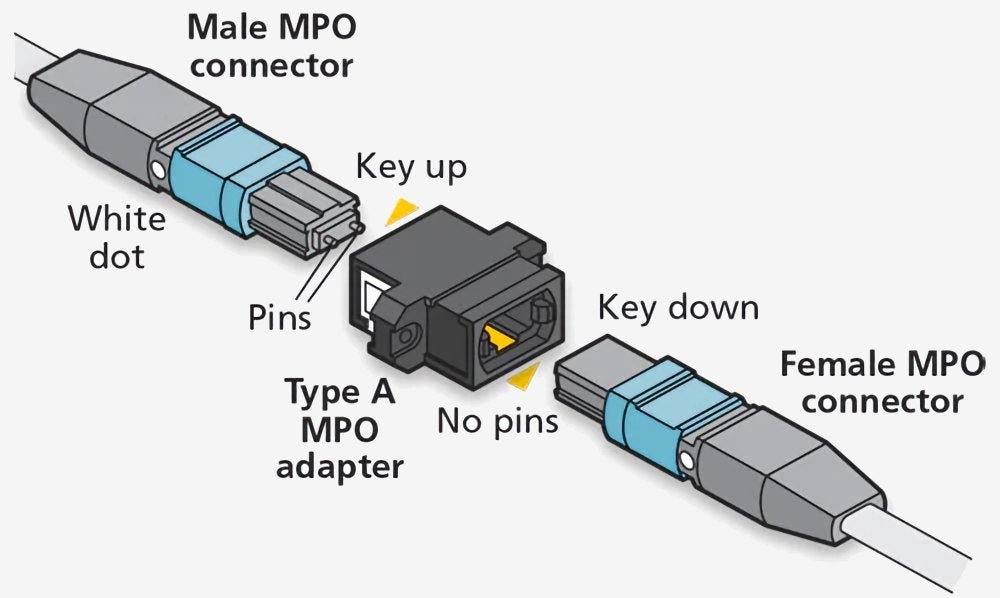

MPO connection standard is TYPE-A Straight (1to1 - 12to12), no crossing.
MPO can be connected direct or via MPO Keystones through wall plates

Cable Ratings
CL3 FT4 Fire Rated for commercial & residential applications
UV Rated can be used directly exposed to sun light outdoor, water-rain-weather resistant.
Can be buried in conduits, resist to outdoor moisture.
In-Wall Rated, Plenum, In-Conduit, In Door, Out Door.
Operating Temperature Typ. -40°C to +105°C
Outer Jacket Diameter 10 millimeters
Max Pull Diameter (at largest connectors point) 0.58 inches / 14.77 millimeters

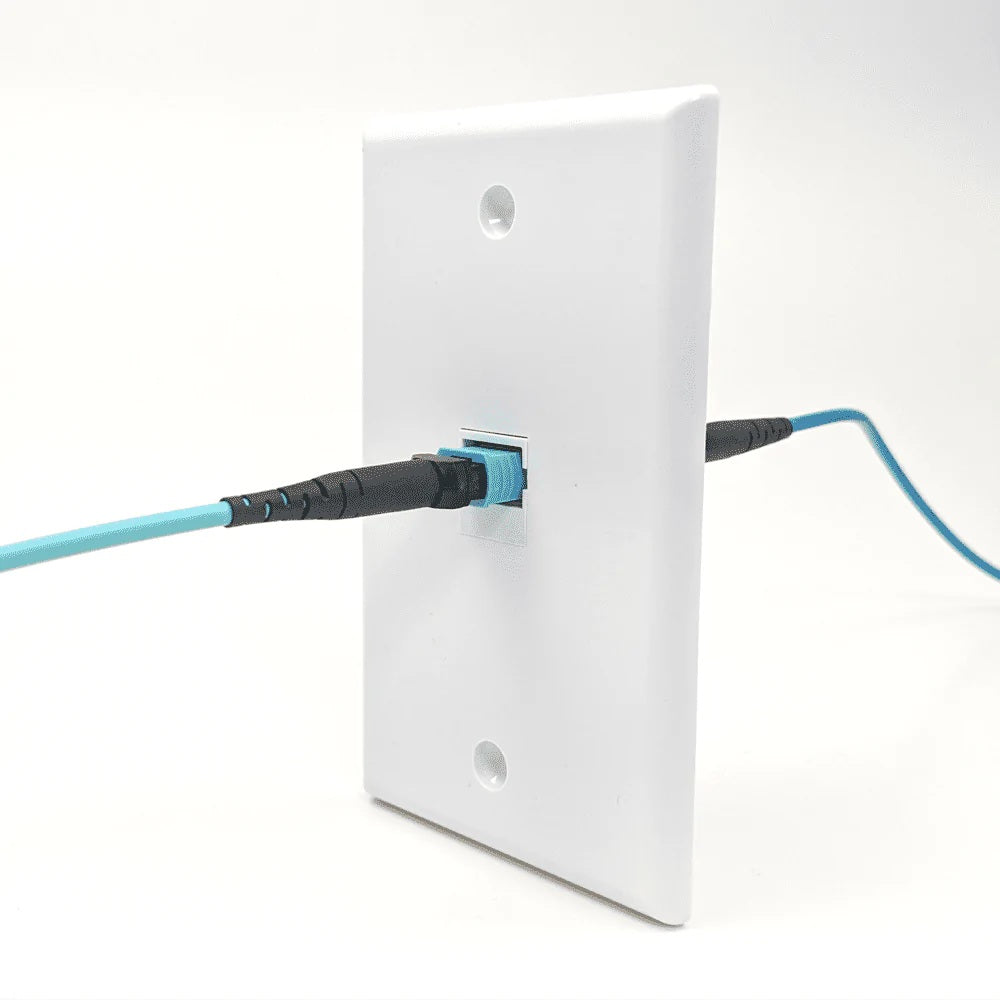

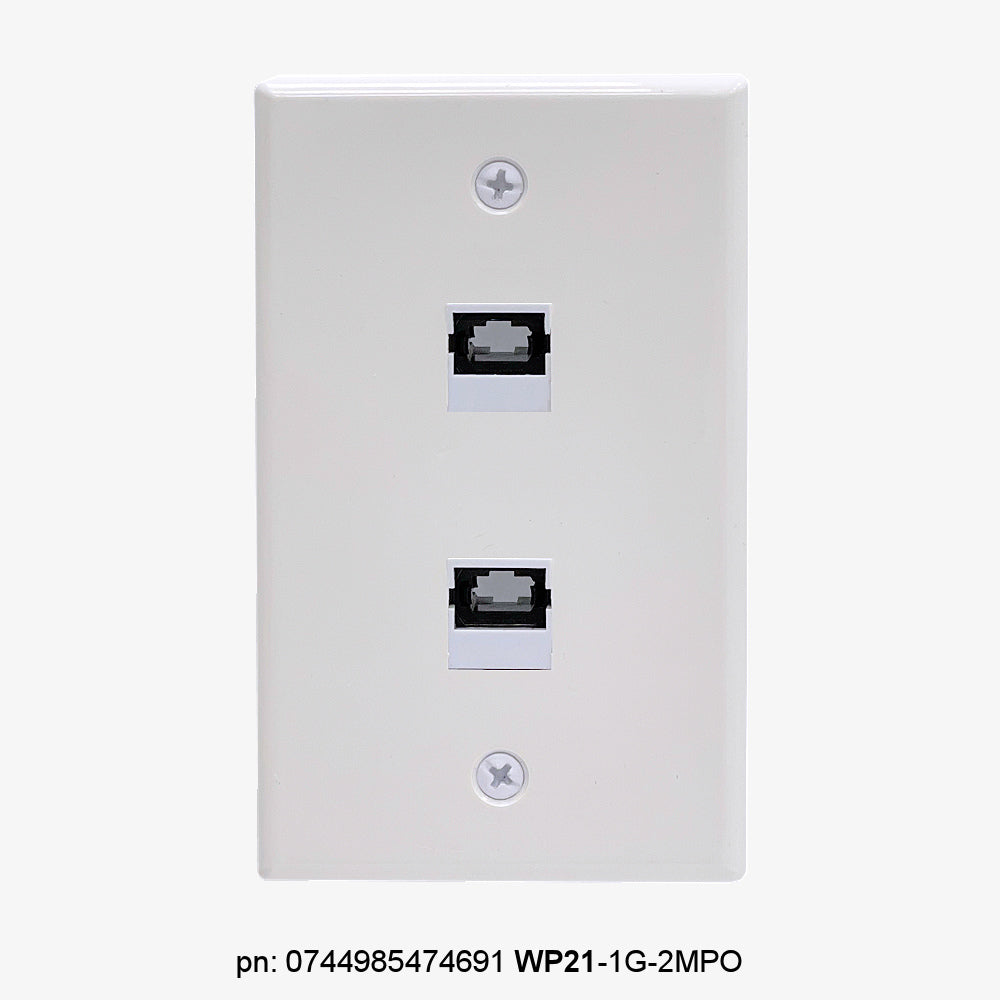

Can Pass via wall plate
Connect the Main cable inside the wall to an MPO Fiber Keystone.
Plug the Pig Tail from outside to the wall plate.
Connect all the devices to each single fiber

PATENTS

PureFiber® Cable

USPTO 63042803 ; 63310889 ; 63310880
WIPO International WO2021262153A1 ; PCT US2039129

Patent pending in Germany,Taiwan, China and other countries.
